Connect Outlook / Microsoft 365 to MailDesk

Your team's Outlook and Microsoft 365 mailboxes belong right where the work happens — inside Odoo, next to your customers, quotes and tickets. This guide walks you, the administrator, through connecting them once and for good: you register a small application with Microsoft, then each mailbox is linked with a single Microsoft sign-in from inside MailDesk. No email passwords are ever stored in Odoo — Microsoft handles the login and hands back a token that you can revoke at any

Your team's Outlook and Microsoft 365 mailboxes belong right where the work happens — inside Odoo, next to your customers, quotes and tickets. This guide walks you, the administrator, through connecting them once and for good: you register a small application with Microsoft, then each mailbox is linked with a single Microsoft sign-in from inside MailDesk. No email passwords are ever stored in Odoo — Microsoft handles the login and hands back a token that you can revoke at any time.

• Basic connects Outlook for reading and the engine's own actions, asking Microsoft for read access to mail (Mail.Read) plus an offline refresh so the connection stays alive.
• Pro asks for broader access (Mail.ReadWrite) so it can also write changes back to Outlook — marking messages read or unread, moving them between folders, and deleting them. The Microsoft app registration is identical for both; Pro simply requests the wider permission when a mailbox is authorized.

How it works, in plain terms

1. You create one application in Microsoft Entra ID (formerly Azure Active Directory).
2. You generate a client secret for it and grant it the right mail permission.
3. You paste the application's Client Id and Secret into MailDesk — once, for the company.
4. From then on, connecting any Outlook mailbox is a single Microsoft sign-in. MailDesk receives a token and a refresh token and starts syncing. The password is never seen.

Why it's worth it

• No passwords in your database — and access can be pulled from Microsoft instantly.
• Modern, efficient sync over Microsoft Graph instead of slow full-mailbox scanning.
• Set up once, used by everyone — register the app a single time, then let each person connect their own mailbox.

Before you start

• A Microsoft Entra ID / Azure account that may create an app registration (Azure portal). For company mailboxes this is normally your Microsoft 365 tenant administrator.
• Your Odoo server reachable over HTTPS at a stable public address. Microsoft refuses OAuth redirects to plain http://.
• Administrator access to Odoo, including the technical settings.
• MailDesk works on Odoo 17, 18, or 19 — the steps below are the same on each.

Part 1 — Register the application with Microsoft

These steps happen in the Azure portal. You only do them once per company.

Step 1 — Create the app registration

1. Open the Azure portal and go to Microsoft Entra ID (you may also see it called Azure Active Directory) → App registrations.
2. Click New registration and give it a recognizable name, for example MailDesk.
3. Choose the supported account types that match who should be able to connect:
   • Single tenant — recommended for one organization; only your own users can connect.
   • Multitenant — for several organizations.
   • Multitenant and personal Microsoft accounts — also allows Outlook.com / Hotmail sign-ins.

4. Under Redirect URI, choose the platform Web and enter your Odoo address followed by /microsoft_outlook/confirm, exactly:

   https://YOUR-ODOO-DOMAIN/microsoft_outlook/confirm


   For example: https://erp.example.com/microsoft_outlook/confirm.

5. Click Register.

On the registration's Overview page, copy the Application (client) ID — you'll need it shortly. If you chose single tenant, also note the Directory (tenant) ID.

Step 2 — Create a client secret

1. In the app registration, open Certificates & secrets.
2. Click New client secret, add a description, choose an expiry, and click Add.
3. Copy the secret Value immediately — Azure shows it only this once. If you lose it, simply create a new one.

Step 3 — Grant the mail permission

1. Open API permissions → Add a permission → Microsoft Graph → Delegated permissions.
2. Add the permission your edition needs:
   • Mail.Read — enough for Basic.
   • Mail.ReadWrite — required for Pro's two-way changes (mark read, move, delete). Mail.ReadWrite also covers reading, so a Pro deployment can simply grant Mail.ReadWrite on its own.
3. You do not need to add the offline-refresh permission (offline_access) — it's a standard sign-in permission that MailDesk requests automatically.

Step 4 — Grant admin consent (only if your organization requires it)

If your organization requires administrator approval for delegated permissions, open API permissions and click Grant admin consent for [your organization]. People can then connect their mailboxes without each seeing an individual consent prompt. This step is optional for personal accounts and for one-off individual testing.

Part 2 — Tell MailDesk about the application

MailDesk stores the Outlook Client Id and Secret per company. There are two equivalent places to enter them — pick whichever you prefer.

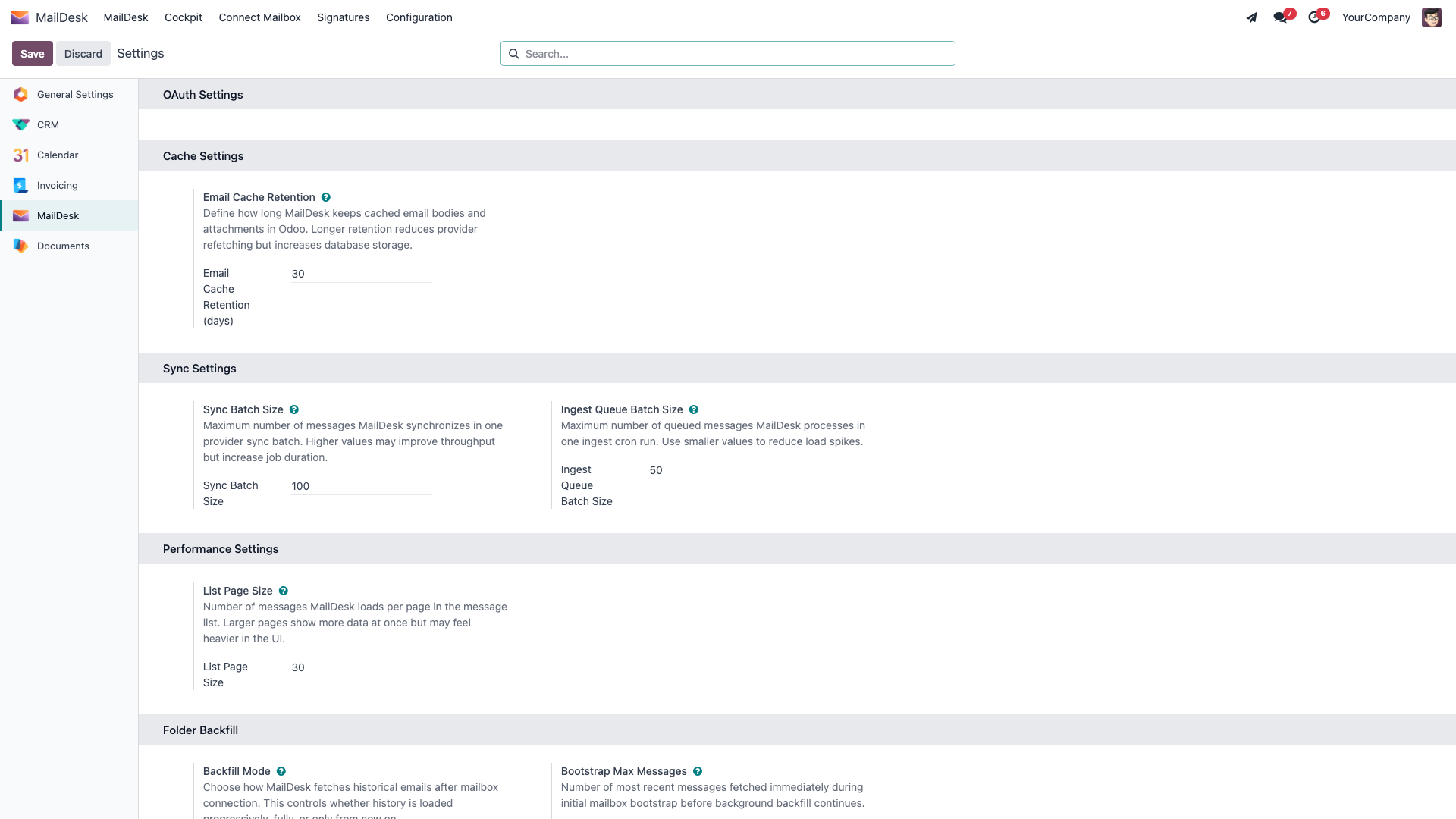

Option A — In the MailDesk settings

1. In Odoo, open Settings, scroll to the MailDesk section, and find the OAuth Settings block at the top.
2. Turn on Use an Outlook Server.
3. Enter the Microsoft ID (the Application / client ID from Step 1) and Secret (from Step 2).
4. Click Save.

The values you see here belong to the company currently selected in the top-right company switcher — so if you run more than one company, make sure you're on the right one.

Option B — On the company form

1. Go to Settings → Users & Companies → Companies and open the company.
2. Open the Mail OAuth tab.
3. Under Outlook OAuth, fill in Outlook Client Id and Outlook Client Secret.
4. Click Save.

Step 5 — Confirm the Odoo base URL

MailDesk builds the Microsoft redirect address from Odoo's base URL, so it must match what you registered in Azure.

1. Go to Settings → Technical → System Parameters.
2. Find web.base.url. It should be your public HTTPS address with no trailing slash — for example https://erp.example.com.
3. Correct it if needed and save.

Part 3 — Connect an Outlook mailbox

With the application in place, connecting a mailbox is quick and repeatable for every user.

Step 6 — Create the incoming Outlook server

Open MailDesk → Configuration → Mailboxes and create a new incoming mail server. Give it a name, then set the Server Type to Outlook OAuth Authentication — this is what tells MailDesk to treat the mailbox as an Outlook account.

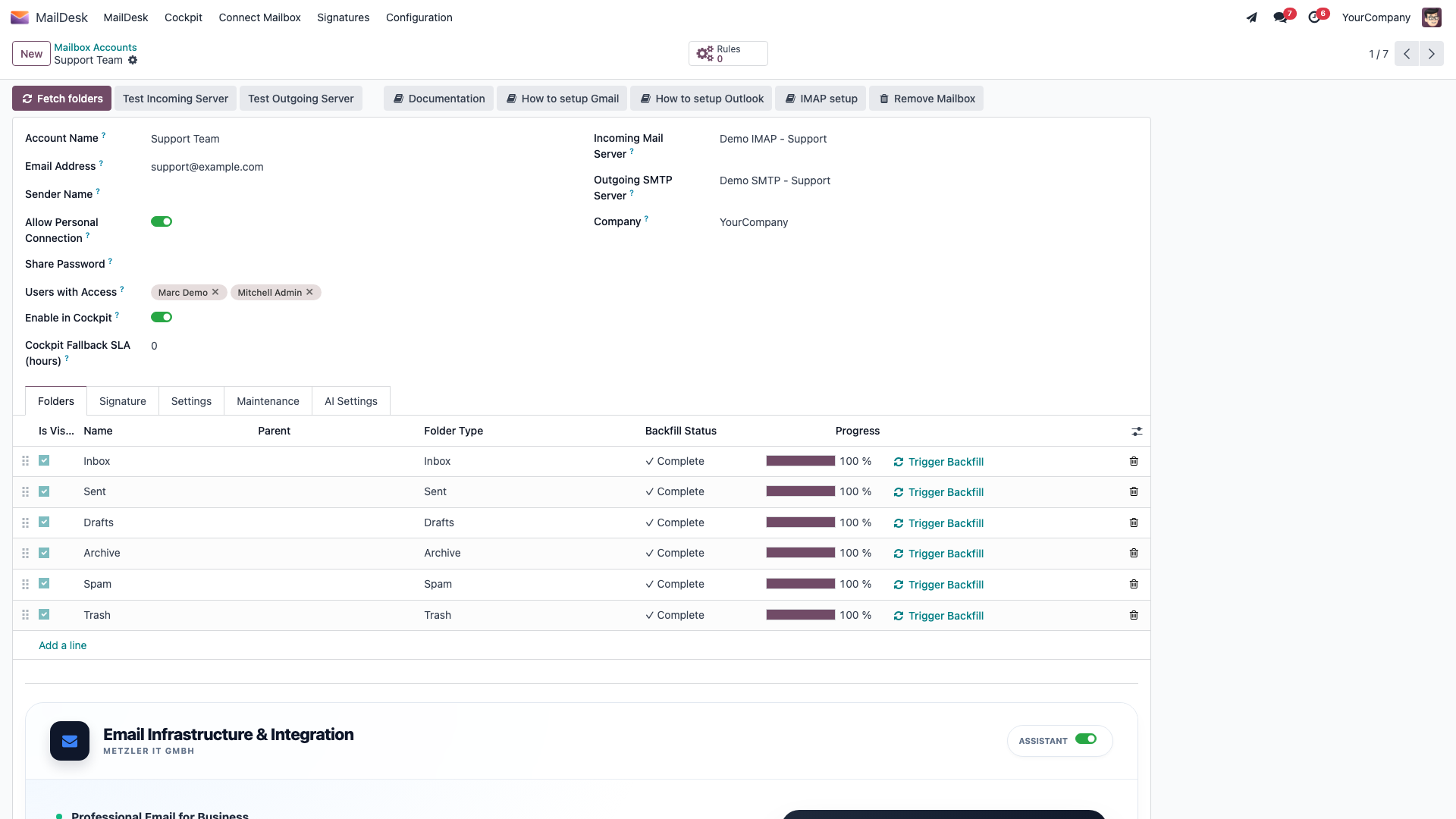

Step 7 — Create the mailbox account

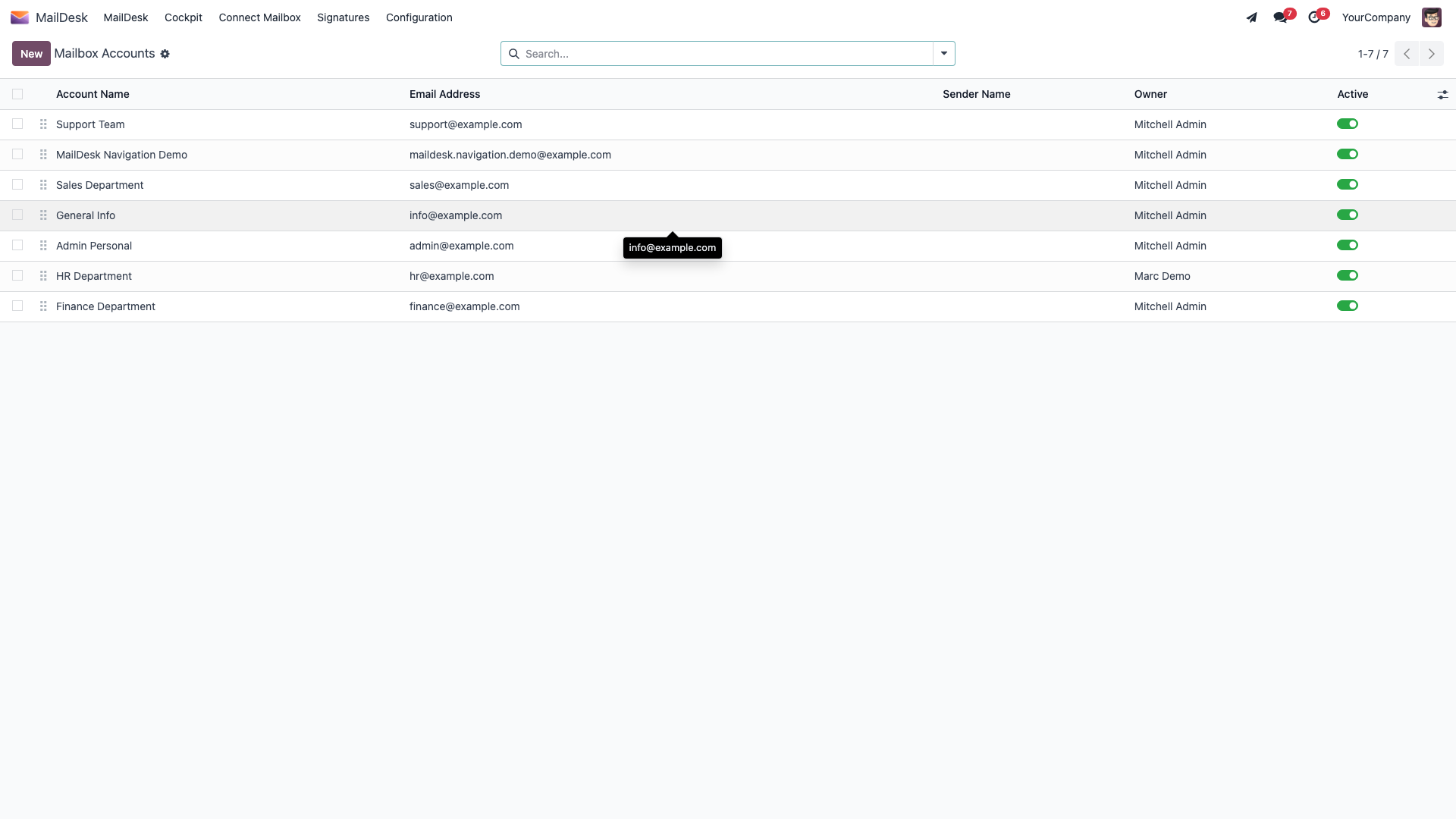

1. Go to MailDesk → Configuration → Mailboxes → Mailbox Accounts and click New.



2. Fill in the Account Name (a friendly label such as Support or Sales), the Email Address of the Outlook mailbox, and link it to the Incoming Mail Server you just created (and an Outgoing SMTP Server for sending). Click Save.



Step 8 — Authorize with Microsoft

1. On the saved Outlook account, click Connect Microsoft Graph (OAuth) in the form header. This button appears only on Outlook accounts.
2. Complete the Microsoft sign-in and accept the requested permissions.
3. Microsoft returns you to the mailbox account in Odoo, and syncing begins.

What happens next

After sign-in the mailbox connects and MailDesk loads the newest messages first, then keeps filling in your history quietly in the background. From then on, new mail arrives automatically on the regular sync schedule. On Pro, the changes you make inside MailDesk — read/unread, moving messages, deleting — are written straight back to Outlook, so the two stay perfectly in step.

Troubleshooting

Looking after the client secret

• The Client Id and Secret live in the Odoo database and are visible only to Settings administrators. They're never written to logs.
• Treat the Secret like any password: don't paste it into tickets, chat, or version control. Set a reminder to rotate it before it expires, and replace it immediately if you suspect it's been exposed.
• If you run separate development, staging, and production servers, register a separate app (or at least a separate redirect URI) per environment, so each has its own credentials and isolated secret rotation.
